Webb spies Chariklo ring system with high-precision technique
by Thaddeus Cesari for NASA Blogs
Baltimore MD (SPX) Jan 26, 2023

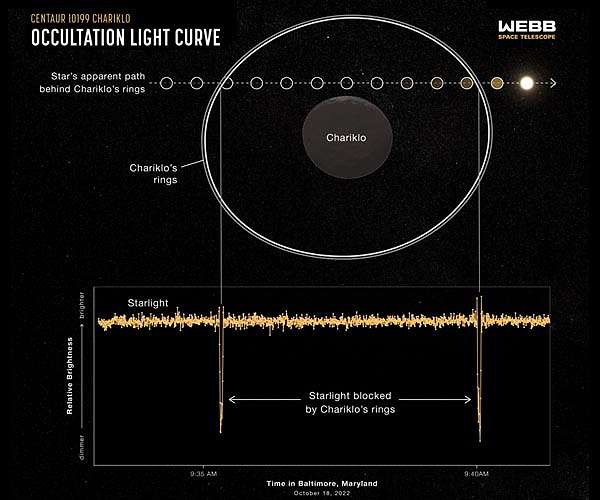

An occultation light curve from Webb's Near-infrared Camera (NIRCam) Instrument at 1.5 microns wavelength (F150W) shows the dips in brightness of the star (Gaia DR3 6873519665992128512) as Chariklo's rings passed in front of it on Oct. 18. As seen in the illustration of the occultation event, the star did not pass behind Chariklo from Webb's viewpoint, but it did pass behind its rings. Each dip actually corresponds to the shadows of two rings around Chariklo, which are ~4 miles (6-7 kilometers) and ~2 miles (2-4 kilometers) wide, and separated by a gap of 5.5 miles (9 kilometers). The two individual rings are not fully resolved in each dip in this light curve. Image credit: NASA, ESA, CSA, Leah Hustak (STScI). Science: Pablo Santos-Sanz (IAA/CSIC), Nicolas Morales (IAA/CSIC), Bruno Morgado (UFRJ, ON/MCTI, LIneA). Infographic here and additional images and detailed captions are here

In an observational feat of high precision, scientists used a new technique with NASA's James Webb Space Telescope to capture the shadows of starlight cast by the thin rings of Chariklo. Chariklo is an icy, small body, but the largest of the known Centaur population, located more than 2 billion miles away beyond the orbit of Saturn. Chariklo is only 160 miles (250 kilometers) or ~51 times smaller than Earth in diameter, and its rings orbit at a distance of about 250 miles (400 kilometers) from the center of the body.

We asked members of the science team observing Chariklo to tell us more about this unique system, the occultation technique, and what they learned from their Webb observations.

In 2013, Felipe Braga-Ribas and collaborators, using ground-based telescopes, discovered that Chariklo hosts a system of two thin rings. Such rings had been expected only around large planets such as Jupiter and Neptune. The astronomers had been watching a star as Chariklo passed in front of it, blocking the starlight as they had predicted. Astronomers call this phenomenon an occultation. To their surprise, the star blinked off and on again twice before disappearing behind Chariklo, and double-blinked again after the star reemerged. The blinking was caused by two thin rings - the first rings ever detected around a small solar system object.

Pablo Santos-Sanz, from Instituto de Astrofisica de Andalucia in Granada, Spain, has an approved "Target of Opportunity" program (program 1271) to attempt an occultation observation as part of Webb's solar system Guaranteed Time Observations (GTO) led by Heidi Hammel from the Association of Universities for Research in Astronomy. By remarkable good luck, we discovered that Chariklo was on track for just such an occultation event in October 2022. This was the first stellar occultation attempted with Webb. A lot of hard work went into identifying and refining the predictions for this unusual event.

On Oct. 18, we used Webb's Near-Infrared Camera (NIRCam) instrument to closely monitor the star Gaia DR3 6873519665992128512, and watch for the tell-tale dips in brightness indicating an occultation had taken place. The shadows produced by Chariklo's rings were clearly detected, demonstrating a new way of using Webb to explore solar system objects. The star shadow due to Chariklo itself tracked just out of Webb's view. This appulse (the technical name for a close pass with no occultation) was exactly as had been predicted after the last Webb course trajectory maneuver.

The Webb occultation light curve, a graph of an object's brightness over time, revealed that the observations were successful! The rings were captured exactly as predicted. The occultation light curves will yield interesting new science for Chariklo's rings. Santos-Sanz explained: "As we delve deeper into the data, we will explore whether we cleanly resolve the two rings. From the shapes of rings' occultation light curves, we also will explore the rings' thickness, the sizes and colors of the ring particles, and more. We hope gain insight into why this small body even has rings at all, and perhaps detect new fainter rings."

The rings are probably composed of small particles of water ice mixed with dark material, debris from an icy body that collided with Chariklo in the past. Chariklo is too small and too far away for even Webb to directly image the rings separated from the main body, so occultations are the only tool to characterize the rings by themselves.

Precision Technique
Editor's Note: This post highlights data from Webb science in progress, which has not yet been through the peer-review process.

In an observational feat of high precision, scientists used a new technique with NASA's James Webb Space Telescope to capture the shadows of starlight cast by the thin rings of Chariklo. Chariklo is an icy, small body, but the largest of the known Centaur population, located more than 2 billion miles away beyond the orbit of Saturn. Chariklo is only 160 miles (250 kilometers) or ~51 times smaller than Earth in diameter, and its rings orbit at a distance of about 250 miles (400 kilometers) from the center of the body.

We asked members of the science team observing Chariklo to tell us more about this unique system, the occultation technique, and what they learned from their Webb observations.

In 2013, Felipe Braga-Ribas and collaborators, using ground-based telescopes, discovered that Chariklo hosts a system of two thin rings. Such rings had been expected only around large planets such as Jupiter and Neptune. The astronomers had been watching a star as Chariklo passed in front of it, blocking the starlight as they had predicted. Astronomers call this phenomenon an occultation. To their surprise, the star blinked off and on again twice before disappearing behind Chariklo, and double-blinked again after the star reemerged. The blinking was caused by two thin rings - the first rings ever detected around a small solar system object.

Pablo Santos-Sanz, from Instituto de Astrofisica de Andalucia in Granada, Spain, has an approved "Target of Opportunity" program (program 1271) to attempt an occultation observation as part of Webb's solar system Guaranteed Time Observations (GTO) led by Heidi Hammel from the Association of Universities for Research in Astronomy. By remarkable good luck, we discovered that Chariklo was on track for just such an occultation event in October 2022. This was the first stellar occultation attempted with Webb. A lot of hard work went into identifying and refining the predictions for this unusual event.

On Oct. 18, we used Webb's Near-Infrared Camera (NIRCam) instrument to closely monitor the star Gaia DR3 6873519665992128512, and watch for the tell-tale dips in brightness indicating an occultation had taken place. The shadows produced by Chariklo's rings were clearly detected, demonstrating a new way of using Webb to explore solar system objects. The star shadow due to Chariklo itself tracked just out of Webb's view. This appulse (the technical name for a close pass with no occultation) was exactly as had been predicted after the last Webb course trajectory maneuver.

This video shows observations taken by NASA's James Webb Space Telescope of a star (fixed in the center of the video) as Chariklo passes in front of it. The video is composed of 63 individual observations with Webb's Near-infrared Camera Instrument's view at 1.5 microns wavelength (F150W) obtained over ~1 hour on Oct. 18. Careful analysis of the star's brightness reveals that the rings of the Chariklo system were clearly detected. Credit: NASA, ESA, CSA, Nicolas Morales (IAA/CSIC)

The Webb occultation light curve, a graph of an object's brightness over time, revealed that the observations were successful! The rings were captured exactly as predicted. The occultation light curves will yield interesting new science for Chariklo's rings.

Santos-Sanz explained: "As we delve deeper into the data, we will explore whether we cleanly resolve the two rings. From the shapes of rings' occultation light curves, we also will explore the rings' thickness, the sizes and colors of the ring particles, and more. We hope gain insight into why this small body even has rings at all, and perhaps detect new fainter rings."

The rings are probably composed of small particles of water ice mixed with dark material, debris from an icy body that collided with Chariklo in the past. Chariklo is too small and too far away for even Webb to directly image the rings separated from the main body, so occultations are the only tool to characterize the rings by themselves.

An occultation light curve from Webb's Near-infrared Camera (NIRCam) Instrument at 1.5 microns wavelength (F150W) shows the dips in brightness of the star (Gaia DR3 6873519665992128512) as Chariklo's rings passed in front of it on Oct. 18. As seen in the illustration of the occultation event, the star did not pass behind Chariklo from Webb's viewpoint, but it did pass behind its rings.

Each dip actually corresponds to the shadows of two rings around Chariklo, which are ~4 miles (6-7 kilometers) and ~2 miles (2-4 kilometers) wide, and separated by a gap of 5.5 miles (9 kilometers). The two individual rings are not fully resolved in each dip in this light curve. Image credit: NASA, ESA, CSA, Leah Hustak (STScI). Science: Pablo Santos-Sanz (IAA/CSIC), Nicolas Morales (IAA/CSIC), Bruno Morgado (UFRJ, ON/MCTI, LIneA). Download the full-resolution version from the Space Telescope Science Institute.

Shortly after the occultation, Webb targeted Chariklo again, this time to collect observations of the sunlight reflected by Chariklo and its rings (GTO Program 1272). The spectrum of the system shows three absorption bands of water ice in the Chariklo system. Noemi Pinilla-Alonso, who led Webb's spectroscopic observations of Chariklo, explained: "Spectra from ground-based telescopes had hinted at this ice (Duffard et al. 2014), but the exquisite quality of the Webb spectrum revealed the clear signature of crystalline ice for the first time."

Dean Hines, the principal investigator of this second GTO program, added: "Because high-energy particles transform ice from crystalline into amorphous states, detection of crystalline ice indicates that the Chariklo system experiences continuous micro-collisions that either expose pristine material or trigger crystallization processes."

Most of the reflected light in the spectrum is from Chariklo itself: Models suggest the observed ring area as seen from Webb during these observations is likely one-fifth the area of the body itself. Webb's high sensitivity, in combination with detailed models, may permit us to tease out the signature of the ring material distinct from that of Chariklo. Pinilla-Alonso commented that "by observing Chariklo with Webb over several years as the viewing angle of the rings changes, we may be able to isolate the contribution from the rings themselves."

Our successful Webb occultation light curve and spectroscopic observations of Chariklo open the door to a new means of characterizing small objects in the distant solar system in the coming years. With Webb's high sensitivity and infrared capability, scientists can use the unique science return offered by occultations, and enhance these measurements with near-contemporaneous spectra. Such tools will be tremendous assets to the scientists studying distant small bodies in our solar system.

About the authors:

Heidi B. Hammel is a Webb interdisciplinary scientist leading Webb's Cycle 1 Guaranteed Time Observations (GTO) of the solar system, including Program 1271 as highlighted here. She is the vice president for science at the Association of Universities for Research in Astronomy (AURA) in Washington, D.C.

Dean Hines is an observatory scientist at the Space Telescope Science Institute (STScI) in Baltimore, Maryland and part of Webb's Mid-infrared Instrument Team. He is the principal investigator for Webb's Guaranteed Time Observations Program 1272 "Kuiper Belt Science with JWST."

Noemi Pinilla-Alonso is an associate scientist in planetary science at the Florida Space Institute at the University of Central Florida and deputy principal scientist for the Arecibo Observatory. She is leading the science analysis of the Chariklo system's spectrum obtained by Webb's Near-infrared Spectrograph.

Pablo Santos-Sanz is a planetary scientist at the Instituto de Astrofisica de Andalucia (CSIC) and director of the Sierra Nevada Observatory in Granada, Spain. He is the principal investigator for Webb's Guaranteed Time Observations Program 1271 "ToO TNOs: Unveiling the Kuiper belt by stellar occultations."
