Euclid calling: downloading the Universe
ESA builds, maintains and upgrades the infrastructure on ground to fly missions: the control rooms, mission control systems and deep-space tracking stations are just some of the most visible elements. These work together with 'unseen' technology sourced from European industry, including mission-critical software, networks, monitoring systems and test and validation facilities.
Euclid calling: downloading the Universe
by Staff Writers
Paris (ESA) Jul 20, 2023

Just as one hand alone can't clap, a mission in space can't be heard without a complex combination of physical infrastructure and data systems on Earth; for monitoring and control of the spacecraft, data management, ground stations and telecommunication networks.

The scale and complexity of the Euclid mission will place high demands on ESA's ground operations, and the Agency has been getting ready.

"Through years of technological advancements, standardisation efforts and the operational adoption of innovative engineering solutions we have successfully tackled the challenges for the ground segment of this extraordinary mission," says Mariella Spada, Head of Ground Systems Engineering and Innovation at ESA.

Creating a conduit for Euclid's science data
Every science mission has its own unique constraints and requirements depending on what it hopes to achieve over its lifetime. In the case of Euclid, it is designed to create the largest, most accurate-ever 3D map of the Universe. Euclid's instruments collect ultra-accurate images in order to identify faint distortions in the shape of very distant galaxies.

The value of these images lies in their incredible preciseness and detail. This takes the image file size into the gigabytes and leads to the key challenge for the mission's ground segment: getting up to 100 GB of big files downlinked every day during a limited, four-hour time window.

That's roughly twice the daily data volume that space telescopes like James Webb and Gaia transmit from the same orbit at Lagrange point 2, 1.5 million kilometres from Earth. With Euclid's shorter 'passes' - talk time - with ESA ground stations, this has required the Euclid ground segment to become especially efficient to enable such a large flow from Euclid to Earth and onwards to science teams.

Upgrading deep space antennas Cebreros and Malargue
The first step was to make it possible to sustain a high data downlink rate of up to 75 megabits per second between Euclid and the Estrack ground stations to download all its data comfortably and efficiently within four hours.

If Euclid were to transmit data in the same way as ESA's Gaia mission, also orbiting at 'L2', it would hopelessly congest ground stations as it sends twice the amount of data.

To make it possible to beam so much data in such a short time, two of ESA's 35 m antennas had to be upgraded in various ways. First, Euclid will be ESA's first science mission at the second Lagrange point to use the higher frequency 'K-band' (26 GHz), which enables a higher data rate.

"Faster communication lines were installed between the control centre in Germany and the ground stations located in Spain and Argentina. And that's just the start of the list," says Age-Raymond Riise, Station Coordinator for Euclid.

"We have four new cryogenically cooled 'low-noise amplifiers' in each station for receiving the signals from space."

By cooling the 'antenna feed' to just 10 degrees above the lowest temperature possible in the Universe, increasing the amount of data that can be downlinked from spacecraft by up to 40%.

New 'file transfer protocols' have also been set up, a new generation of ground station modems are in use and moving mirrors have been built to route Euclid's signal to the new equipment.

And that's not all. This 26 GHz frequency benefits large data volumes, but the connection itself is less stable as it can lose strength due to the influence of water in the atmosphere, potentially causing data loss. Further engineering went into safeguarding against such data loss, benefiting not just Euclid but also other ESA missions that also use high frequencies.

Adding a black box to the ground stations
When receiving a transmission at a ground station, the useful data is extracted from 'packets' that function like a kind of envelope with instructions. The unpacked, uncoded data constitutes only about half the data Euclid sends. This is then sent on to mission control at ESA's European Space Operations Centre (ESOC), in Darmstadt, Germany, through a private, secure connection established especially for this purpose.

Normally, the check for data completeness is done at the mission control centre, followed by sending a command to the spacecraft to retransmit data if necessary.

"In this case, the link between Euclid itself and the ground stations at Cebreros or Malargue is much faster than the connection from the ground stations to mission control at ESOC," explains Arek Kowalczyk, Euclid Data Systems Manager.

"We can't afford to wait until all data has arrived at the mission control system to check if any part is missing. Instead, we developed a piece of software that runs on a Euclid-dedicated machine at the ground station. It consolidates the parts of a data file and forwards only the instructions concerning any missing data to the mission control system at ESOC, from where they can request the missing parts to be retransmitted to ground. Only once the file is complete, is it transferred to ESOC."

This automated solution avoids data loss and allows any required retransmission to be performed automatically.

Dragging and dropping files to space
Euclid's large images inspired a new on-board data handling system, meaning it can handle any kind of files and not only the usual data packets which have stringent data formatting requirements.

The flight controllers now have a much more intuitive, graphical interface, lowering complexity and reducing both the potential for human error and the amount of training required. It even allows the operators to drag and drop files to upload to, or download from, Euclid in space.

Most importantly perhaps, scientists don't need to format their data in a specific way. They can have their instruments create whatever file format works best for them, and they receive their files exactly as they want them.

Keeping up with Euclid
Euclid's launch went smoothly and commissioning continues, but for everyone in the data operations teams, the most demanding time is still ahead.

It will be a relentless task to keep up with Euclid, processing large amounts of data in the tight time windows during ground station passes, but it's one they are more than ready for.

"We are now fully prepared to download the 'Universe' from Euclid," says Mariella Spada. "This is the result of the hard work and resourcefulness of the team, along with many colleagues from ESA and beyond who contributed to this success."

Related Links
Euclid at ESA
Stellar Chemistry, The Universe And All Within It

Subscribe Free To Our Daily Newsletters

The following news reports may link to other Space Media Network websites.
Experimental Phase commences for China's groundbreaking solar telescope array
Sydney, Australia (SPX) Jul 18, 2023

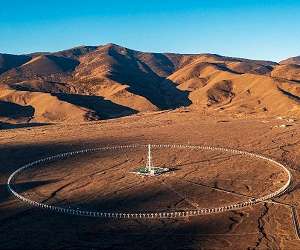

The National Space Science Center of the Chinese Academy of Sciences has announced the beginning of experimental observation for its cutting-edge solar telescope array located in Southwest China. The array, known as the Daocheng Solar Radio Telescope (DSRT), is an integral component of China's Meridian Project's second phase. Positioned in Daocheng county, Sichuan province, the DSRT is an advanced solar radio imaging telescope. The system comprises 313 parabolic antennas, each with a six-meter dia ... read more
