Local fingerprint of hydrogen bonding captured in experiments
by Staff Writers
Berlin, Germany (SPX) Mar 28, 2016

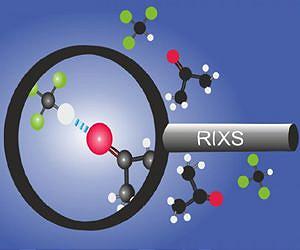

The team could observe for the first time with RIXS how the formation of hydrogen bonds does change C=O bonds in aceton molecules. Image courtesy HZB. For a larger version of this image please go here.

Molecules are composed of atoms that maintain specific intervals and angles between one another. However, the shape of a molecule can change, for example, through proximity to other molecules, external forces and excitations, and also when a molecule makes a chemical connection with another molecule, for instance in a chemical reaction.

A very useful concept in describing the changes that are possible in molecules is the use of what are called "potential surfaces" or energy landscapes. However, these are not actual surfaces in real space. They are more viewed as parameters defining the molecule, which can then be portrayed as a surface. An example would be the stretching of a carbon-oxygen bond, or the angle between various molecular groups.

You can imagine such surfaces as being like hilly landscapes. If light excites part of the molecule into oscillation, the state of the molecule moves upward, energetically speaking, perhaps even up over a pass or a peak. It either returns finally to its previous energy minimum, or lands in a different energy dip that corresponds to altered angles or bond lengths. Some of these changes allow us to draw conclusions about hydrogen bonding with neighbouring molecules.

Response after excititation of the double bond C=O analysed
The team headed by Annette Pietzsch and Alexander Fohlisch has now for the first time succeeded in precisely measuring these extremely subtle surfaces surrounding a small molecule named acetone (C3H6O). They used the resonant inelastic X-ray scattering (RIXS) method at the Swiss Light Source of the Paul Scherrer Institut (PSI) in Switzerland for this work.

"We chose to selectively excite the double bond between the carbon and oxygen atom of acetone into oscillation and analysed the responses in detail", explains Annette Pietzsch. Thanks to the extremely high resolution of the measurement data, they were successful in mapping the potential surface along this C=O double bond.

Fingerprint of hydrogen bonds observed
In the second part of the experiment, they investigated a mixture of acetone and chloroform. A liquid mixture like this is denoted as azeotropic, meaning that the two ingredients can no longer be separated from one another through distillation.

The scientists were now able for the first time to empirically observe how the acetone molecules linked tightly to the chloroform molecules via hydrogen bonding. They were able to identify in the measurement data the fingerprint of the hydrogen bonds that form between the C=O group of the acetone molecules and hydrogen groups of the chloroform molecules.

Finding a needle in the haystack
"In conclusion, we demonstrated how sub-natural line width vibrational resolved RIXS gives direct experimental access to the ground state potential energy surface around selected atomic sites and moieties, not accessible with other techniques.

Our approach to the local ground state potential energy surface (...) resembles finding a needle in a haystack", writes the team in its contribution published in the renowned periodical Scientific Reports.

The performance of this approach will benefit strongly from upcoming high-brilliance synchrotrons and free-electron lasers in combination with upcoming high resolution RIXS instruments. Therefore, they foresee wide applicability of this technique to all thermal, collective and impurity driven chemistry and materials issues in the near future.

Annette Pietzsch works at the BESSY II synchrotron source in Berlin, setting up METRIXS - an instrument for resonant inelastic X-ray scattering that will be able to achieve considerably higher resolution in the future.

In addition, the meV-RIXS experiment will make high-resolution X-ray scattering in low-energy regions feasible. Alexander Fohlisch heads the HZB Institute for Methods and Instrumentation for Research with Synchrotron Radiation and is spokesperson of Helmholtz Virtual Institute for Dynamic Pathways in Multidimensional Landscapes (Helmholtz Virtual Institute 419).

Scientific Reports | 6:20054 | DOI: 10.1038/srep20054 Ground state potential energy surfaces around selected atoms from resonant inelastic x-ray scattering, Simon Schreck, Annette Pietzsch, Brian Kennedy, Conny Sathe, Piter S. Miedema, Simone Techert, Vladimir N. Strocov, Thorsten Schmitt, Franz Hennies, Jan-Erik Rubensson and Alexander Fohlisch.
