IRON AND ICE
Riding a blue-green wake of xenon to Ceres
by Marc Rayman for Dawn News
Pasadena CA (JPL) Feb 04, 2014

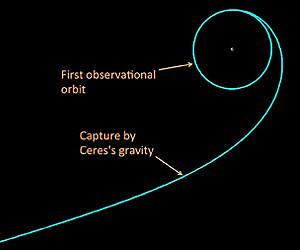

The final part of Dawn's approach trajectory to Ceres, including when the dwarf planet captures the spacecraft. Dawn continues ion thrusting to its first observational orbit at an altitude of 8,400 miles (13,500 kilometers). Image courtesy JPL/NASA.

Dawn is continuing its trek through the main asteroid belt between Mars and Jupiter. Leaving behind a blue-green wake of xenon from its ion propulsion system, its sights are set on dwarf planet Ceres ahead. The journey has been long, but the veteran space traveler (and its support team on distant Earth) is making good progress for its rendezvous early next year.

The final part of Dawn's approach trajectory to Ceres, including when the dwarf planet captures the spacecraft. Dawn continues ion thrusting to its first observational orbit at an altitude of 8,400 miles (13,500 kilometers). Credit: JPL/NASA

Last month, we had a preview of many of the activities the probe will execute during the three months that culminate in settling into the first observational orbit at Ceres in April 2015. At that orbit, about 8,400 miles (13,500 kilometers) above the alien landscapes of rock and ice, Dawn will begin its intensive investigations.

Nevertheless, even during the "approach phase," it will often observe Ceres with its camera and one of its spectrometers to gain a better fix on its trajectory and to perform some preliminary characterizations of the mysterious world prior to initiating its in-depth studies. The discussion in December did not cover the principal activity, however, which is one very familiar not only to the spacecraft but also to readers of these logs.

The majority of the time in the approach phase will be devoted to continuing the ion-powered flight. We described this before Vesta, but for those few readers who don't have perfect recall (we know who you are), let's take another look at how this remarkable technology is used to deliver the adventurer to the desired orbit around Ceres.

Thrusting is not necessary for a spacecraft to remain in orbit, just as the moon remains in orbit around Earth and Earth and other planets remain in orbit around the sun without the benefit of propulsion. All but a very few spacecraft spend most of their time in space coasting, following the same orbit over and over unless redirected by a gravitational encounter with another body.

In contrast, with its extraordinarily efficient ion propulsion system, Dawn's near-continuous thrusting gradually changes its orbit. Thrusting since December 2007 has propelled Dawn from the orbit in which the Delta rocket deposited it after launch to orbits of still greater distance from the sun.

The flight profile was carefully designed to send the craft by Mars in February 2009, so our celestial explorer could appropriate some of the planet's orbital energy for the journey to the more distant asteroid belt, of which it is now a permanent resident. In exchange for Mars raising Dawn's heliocentric orbit, Dawn lowered Mars's orbit, ensuring the solar system's energy account remained balanced.

While spacecraft have flown past a few asteroids in the main belt (although none as large as the gargantuan Vesta or Ceres, the two most massive objects in the belt), no prior mission has ever attempted to orbit one, much less two. For that matter, this is the first mission ever undertaken to orbit any two extraterrestrial destinations. Dawn's exclusive assignment would be quite impossible without its uniquely capable ion propulsion system.

But with its light touch on the accelerator, taking nearly four years to travel from Earth past Mars to Vesta, and more than two and a half years from Vesta to Ceres, how will it enter orbit around Ceres? As we review this topic in preparation for Ceres, bear in mind that this is more than just a cool concept or neat notion. This is real.

The remarkable adventurer actually accomplished the extraordinary feats at Vesta of getting into and out of orbit using the delicate thrust of its ion engines.

Whether conventional spacecraft propulsion or ion propulsion is employed, entering orbit requires accompanying the destination on its own orbit around the sun. This intriguing challenge was addressed in part in February 2007. In February 2013, we considered another aspect of what is involved in climbing the solar system hill, with the sun at the bottom, Earth partway up, and the asteroid belt even higher.

We saw that Dawn needs to ascend that hill, but it is not sufficient simply to reach the elevation of each target nor even to travel at the same speed as each target; the explorer also needs to travel in the same direction. Probes that leave Earth to orbit other solar system bodies traverse outward from (or inward toward) the sun, but then need to turn in order to move along with the body they will orbit, and that is difficult.

Those of you who have traveled around the solar system before are familiar with the routine of dropping into orbit. The spacecraft approaches its destination at very high velocity and fires its powerful engine for some minutes or perhaps even about an hour, by the end of which it is traveling slowly enough that the planet's gravity can hold it in orbit and carry it around the sun.

These exciting events may range from around 1,300 to 3,400 mph (0.6 to 1.5 kilometers per second). With ten thousand times less thrust than a typical propulsion system on an interplanetary spacecraft, Dawn could never accomplish such a rapid maneuver. As it turns out, however, it doesn't have to.

Dawn's method of getting into orbit is quite different, and the key is expressed in an attribute of ion propulsion that has been referred to 63 times (trust or verify; it's your choice) before in these logs: it is gentle. (This example shows just how gentle the acceleration is.) With the gradual trajectory modifications inherent in ion propulsion, sharp changes in direction and speed are replaced by smooth, gentle curves.

The thrust profiles for Dawn's long interplanetary flights are devoted to the gradual reshaping of its orbit around the sun so that by the time it is in the vicinity of its target, its orbit is nearly the same as that of the target. Rather than hurtling toward Vesta or Ceres, Dawn approaches with grace and elegance.

Only a small trajectory adjustment is needed to let its new partner's gravity capture it, so even that gentle ion thrust will be quite sufficient to let the craft slip into orbit. With only a nudge, it transitions from its large, slow spiral away from the sun to an inward spiral centered around its new gravitational master.

[Image] This graphic shows the planned trek of NASA's Dawn spacecraft from its launch in 2007 through its arrival at the dwarf planet Ceres in early 2015. Note how Dawn spirals outward to Vesta and then still more to Ceres. Credit: JPL/NASA

To get into orbit, a spacecraft has to match speed, direction and location with its target. A mission with conventional propulsion first gets to the location and then, using the planet's gravity and its own fuel-guzzling propulsion system, very rapidly achieves the required speed and direction. By spiraling outward from the sun, first to the orbit of Vesta and now to Ceres, Dawn works on its speed, direction and location all at the same time, so they all gradually reach the needed values at just the right time.

To illustrate this facet of the difference between how the different systems are applied to arrive in orbit, let's imagine you want to drive your car next to another traveling west at 60 mph (100 kilometers per hour). The analogy with the conventional technology would be similar to speeding north toward an intersection where you know the other car will be.

You arrive there at the same time and then execute a screeching, whiplash-inducing left turn at the last moment using the brakes, steering wheel, accelerator and adrenaline. When you drive an ion propelled car (with 10 times higher fuel efficiency), you take an entirely different path from the start, one more like a long, curving entrance ramp to a highway.

As you enter the ramp, you slowly (perhaps even gently) build speed. You approach the highway gradually, and by the time you have reached the far end of the ramp, your car is traveling at the same speed and in the same direction as the other car. Of course, to ensure you are there when the other car is, the timing is very different from the first method, but the sophisticated techniques of orbital navigation are up to the task.

In March or April 2015, as the probe follows its approach trajectory to Ceres, their paths will be so similar they will be racing around the sun at nearly the same speed (38,500 mph, or 17.2 kilometers per second) and in the same direction. But what matters is their relative velocity. When at a range of 30,000 miles (48,000 kilometers), the spacecraft will be closing in on its destination at less than 85 mph (37 meters per second).

The combination of distance and velocity will allow Ceres to take Dawn in its grasp. The spacecraft will not even notice the difference, but it will be in orbit around its second and final celestial target, even as it continues ion thrusting to spiral to its first planned orbital altitude two and a half weeks later.

Unlike missions that use conventional chemical propulsion, there is no sudden change on the spacecraft and no nail-biting on Earth. If you were in space watching the action, you probably would be hungry, cold and hypoxic, but you would not notice anything unusual about the scene as Ceres smoothly and tenderly takes Dawn into an invisible gravitational embrace.

If instead of being in deep space, you had been in Dawn mission control watching the action when the spacecraft entered orbit around Vesta in July 2011 you would have been in the dark and all alone (until JPL Security arrived to escort you away). Your correspondent was out dancing, and other members of the team were engaged in activities similarly unrelated to controlling a probe hundreds of times farther away than the moon.

There was no need to have radio contact with the reliable spaceship. It had already been thrusting for 70 percent of its time in space, so it was performing a very familiar function. It should be no different at Ceres (although the dance program may not be exactly the same).

When Dawn enters orbit, no one is tense or anxious; rather, all the drama is in the promise of the spectacular discoveries in exploring uncharted worlds, the rewards of new knowledge, and the thrill of knowing that humankind is reaching far, far from home in a grand effort to know the cosmos.

Dawn is 16 million miles (26 million kilometers) from Ceres. It is also 2.05 AU (191 million miles, or 307 million kilometers) from Earth, or 855 times as far as the moon and 2.08 times as far as the sun today. Radio signals, traveling at the universal limit of the speed of light, take 34 minutes to make the round trip.

.
