Free Newsletters - Space News - Defense Alert - Environment Report - Energy Monitor
by Staff Writers
Sendai, Japan (SPX) May 06, 2014
Three-dimentional (3D) nanoporous graphene with preserved 2D Dirac electronic characters was successfully synthesized by Dr. Yoshikazu Ito and Prof. Mingwei CHEN at Advanced Institute for Materials Research (AIMR), Tohoku University.
The nanoporous graphene is constructed by a single layer graphene sheet that is continuously inter-connected to form a complex 3D network structure. This free-standing nanoporous graphene with an excellent crystallinity possesses high mobility, holding great promise for the applications in electronic devices.

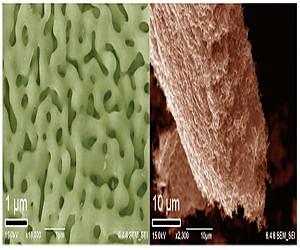

The nanoporous graphene were grown by a nanoporous metal based chemical vapor deposition (CVD) method as shown in Figure 1(a). The overall morphology of the nanoporous graphene in Figure 1(b) shows a ~20 um thick free-standing bulk sheet. Although the 3D nanoporous graphene has a complex structure, it is demonstrated to be 500 cm2/Vs in electron mobility and a mass-less Dirac cone system.
As the conventional transistor requires electron mobility of 200 cm2/Vs, it is greatly expected that this nanoporous graphene will bring a new device which can be replaced with Si devices.
This work is collaborated with the research teams of Prof. Katsumi Tanigaki and Prof. Takashi Takahashi at AIMR, Tohoku University. This research results will be published in issue 19 of 'Angewandte Chemie International Edition' as a Hot Paper on 2 May. Introduction
Graphene is a mono-layer carbon material with low cost, high chemical/thermal stability, and ultrahigh strength and is expected to be a replacement of silicon and noble metals for electron devices, battery materials, photo-/ion detectors and catalysts. Although some of graphene products such as display and electrodes are commercially available, the applications are limited due to the 2D sheet structure.
In other words, the performance per gram is excellent but the performance per volume cannot be achieved easily. Therefore, many efforts have been made to construct the 2D material as a 3D structure with retained physical/chemical properties and high volumetric performance. However, the reported 3D nanoporous carbon materials suffer from poor mobility because of the lower crystallinity, which cannot be used for the electron devices.
To achieve semiconductor-grade 3D carbon materials, the monolayer graphene sheet with a high crystalline structure is required in a 3D structure. Thus, we have developed a 3D nanoporous graphene with preserved high mobility and unique 2D electronic properties of graphene.
The atomic structure of the nanoporous graphene was observed by TEM as shown in Figure 2. The ligament in Figure 2(a) were constructed by flat surface parts (Figure 2(b)) and curvature parts (Figure 2(c)) of the graphene sheet. It is obvious that the six-membered rings were observed in the flat part while the five- and seven-membered rings were observed in the curved parts due to the geometrical requirement to create the curvature structures.
The physical properties of the nanoporous graphene were investigated. As the 2D graphene is a Dirac cone system (Figure 3(a)) and shows a linear dispersion electronic density of state (Figure 3(b)). The 3D nanoporous graphene in Figure 2 also demonstrates a linear relationship near the Fermi level, which is similar with the 2D graphene.
The electron mobility of the nanoporous graphene with different pore sizes was measured. As the temperature increase, the electron mobility slightly decreases to 200-400 cm2/Vs. As compared with 2D CVD graphene, the electron mobility is still high enough for device applications.
In conclusion, the nanoporous graphene preserves 2D graphene futures. These findings are firstly reported for revealing the physical properties of 3D nanoporous graphene.
High Quality Three-Dimensional Nanoporous Graphene; Yoshikazu Ito, Yoichi Tanabe, Huajun Qiu, Katsuaki Sugawara, Satoshi Heguri, Ngoc Han Tu, Khuong Kim Huynh, Takeshi Fujita, Takashi Takahashi, Katsumi Tanigaki, Mingwei Chen, Angewandte Chemie International Edition
Advanced Institute for Materials Research
Carbon Worlds - where graphite, diamond, amorphous, fullerenes meet
|The content herein, unless otherwise known to be public domain, are Copyright 1995-2014 - Space Media Network. All websites are published in Australia and are solely subject to Australian law and governed by Fair Use principals for news reporting and research purposes. AFP, UPI and IANS news wire stories are copyright Agence France-Presse, United Press International and Indo-Asia News Service. ESA news reports are copyright European Space Agency. All NASA sourced material is public domain. Additional copyrights may apply in whole or part to other bona fide parties. Advertising does not imply endorsement, agreement or approval of any opinions, statements or information provided by Space Media Network on any Web page published or hosted by Space Media Network. Privacy Statement All images and articles appearing on Space Media Network have been edited or digitally altered in some way. Any requests to remove copyright material will be acted upon in a timely and appropriate manner. Any attempt to extort money from Space Media Network will be ignored and reported to Australian Law Enforcement Agencies as a potential case of financial fraud involving the use of a telephonic carriage device or postal service.|
